Autel KM100 Program Hyundai Accent 2018-2022 Smart Key

Autel MaxiIM KM100 IMMO Key Tool can program 2018-2022 Hyundai Accent(HC) add key & all keys lost by OBD. With free 8A pin code reading, only 2 steps to finish.



Procedure

Plug VCI200 into OBD to connect KM100.

IMMO >> Hyundai >> Manual selection >> Europe >> Accent(HC) >> 2018- >> Smart key >> Yes >> Hot function

Press the START button.



Step1. Read 8A Pin Code

Read immobilizer password >> Read Pin code(8A smart card)

This function only supports models with 8A chip type smart card. Please ensure the key type is correct! Press “Yes”.

Turn the Hazard warning light on.

Turn the ignition off (note: the instrument screen is black).

Open and then close the driver door once!

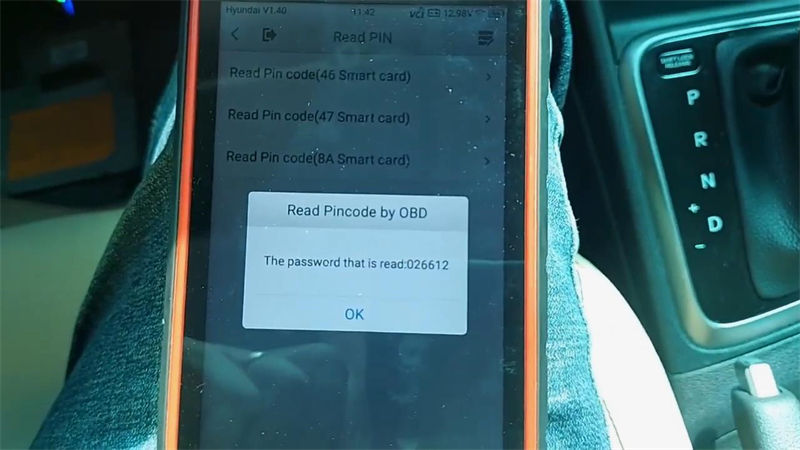

Reading password, please wait…

The password that is read: 026612



Step2. Learn Key

Smart key learning(guided) >> Start

This function supports add key and all key lost;

Performing this function will erase all existing keys, all the old keys must be relearned again to be able to use normally, press “Yes” to continue.

Turn the ignition off (note: the instrument scree is black).

Open and then close the driver door once!

Autel KM100 will enter the 6-digit security code automatically.

OK >> Yes



Note! Click “OK” to complete the following steps:

Within 5s after OK is pressed, use the back or top of the smart key to hold down the START button for 5s until the anti-theft lamps flash.

(If the operation failed with the prompts, please remove the key case and re-execute the above steps so that the key chip can be successfully programmed.)

Programming succeeded.

Press “Yes” to add next key, “No” to complete.



Number of the current keys: 2

Please exit the system to the vehicle selection menu and check if the key is programmed successfully.

Test 2 keys, both can work well.

Done.
