Autel IM608 Program 2016 Kia Optima All Smart Keys Lost

We’re working on a 2016 Kia Optima, it’s a push-start vehicle with all smart keys lost. Next I’m gonna program a new key for it with Autel IM608 Pro2.

Key Generation

Put the Autel IKEY Remote into XP400Pro key slot.

Universal key >> Accept >> Universal key generation >> North America >> Kia >> Type by model >> OPTIMA(JF) >> 2016 >> Kia OPTIMA(JF)2015-2021 >> Generate universal key

Key generation is successful.

Read Password

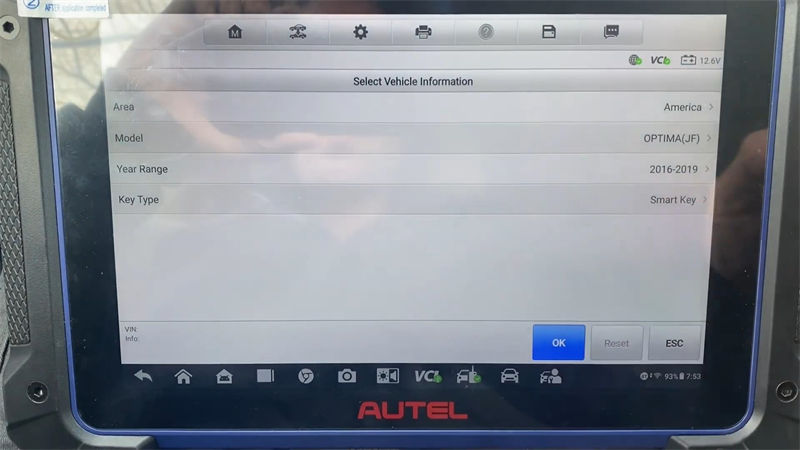

IMMO >> Accept >> Kia >> Manual selection >> America >> OPTIMA(JF) >> 2016-2019 >> Smart key >> OK >> Control unit >> Read immobilizer password >> Read Pin code(47 smart card)

This function only supports models with 47 chip type smart card.

Please ensure the key type is correct!

Press “Yes”.

Turn the Hazard warning light on.

Turn the ignition off(note: the instrument screen is black).

Open and then close the driver door once!

Press “OK”.

Autel IM608 II is reading password…

The password is: 837013

Add Key

Keyless system >> Remote control learning >> Smart key learning

This function supports add key and all key lost;

Performing this function will erase all existing keys, all the old keys must be relearned again to be able to use normally.

Press “Yes” to continue.

Turn the Hazard warning light on.

Turn the ignition off (note: the instrument screen is black).

Open and then close the driver door once!

Please enter the 6-digit security code: 837013.

Note! Click OK to complete the following steps:

Within 5s after OK is pressed, use the back or top of the smart key to hold down the START button for 5s until the anti-theft lamps flash.

(If the operation failed with the prompts, please remove the key case and re-execute the above steps so that the key chip can be successfully programmed.)

Programming succeeded.

Press No to complete.

Number of current keys: 1

Please exit the system to the vehicle selection menu and check if the key is programmed successfully.

Test the new key. Lock and unlock OK, start the engine OK.

Done.
