Autel IM508S Program 2022 Kia Telluride All Keys Lost by OBD

Autel MaxiIM IM508S/ IM508 can program 2019-2022 Kia Telluride all keys lost by OBD successfully. Follow the post below to learn how to do.


IM508S KIA(EU) Telluride(ON) IMMO Car List

Year System Add key All keys lost Read password Remote learning IMMO part replacement
2020-2021 Immobilizer √ (by OBD) √ (by OBD) × √ (by OBD) ECM
2020-2021 Keyless system √ (by OBD) √ (by OBD) √ (partially supported by OBD) Not required ECM, SMK, ESCL
2022- Immobilizer √ (by OBD) √ (by OBD) × √ (by OBD) ECM
2022- Keyless system √ (by OBD) √ (by OBD) × Not required ECM, SMK, ESCL



Connect Autel IM508S to OBD2 port, enter into

IMMO >> Kia >> Manual selection >> America >> Telluride(ON) >> 2019- >> Smart key >> Yes >> Control unit >> Read immobilizer password

Reading password… please wait.

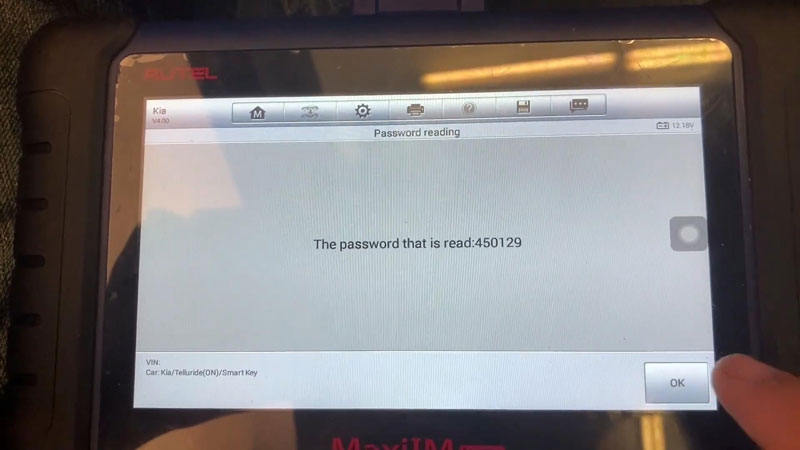

The password has been read out: 450129


Smart key programming >> Start

This function supports add key and all keys lost;

Performing this function will erase all existing keys, all the old keys must be relearned again to be able to use normally. Press “Yes” to continue.


Turn the ignition off (note: the instrument scree is black).

Open and then close the driver door once!


Please enter the 6-digit security code: 450129

OK >> Yes


Note! Click “OK” to complete the following steps:

Within 5s after OK is pressed, use the back or top of the smart key to hold down the START button for 5s until the anti-theft lamps flash.

(If the operation failed with the prompts, please remove the key case and re-execute the above steps so that the key chip can be successfully programmed.)


Programming succeeded.

Press “Yes” to program next key, “No” to complete.


Number of current keys: 2

Please exit the system to the vehicle selection menu and check if the key if programmed successfully.


Test 2 keys, both can work well.
