Using the Autel MaxiSYS Ultra EV, this guide shows how to check the high-voltage battery condition of a 2016 Nissan Leaf (30kWh, 147,797 km) via OBD, including module status, cell status, and live battery data, and then generate a diagnostic report.
At this mileage, battery condition is a key factor affecting the vehicle’s usability, making it necessary to read real battery data directly from the system.
Check Video Tutorial:
Step-by-Step Guide

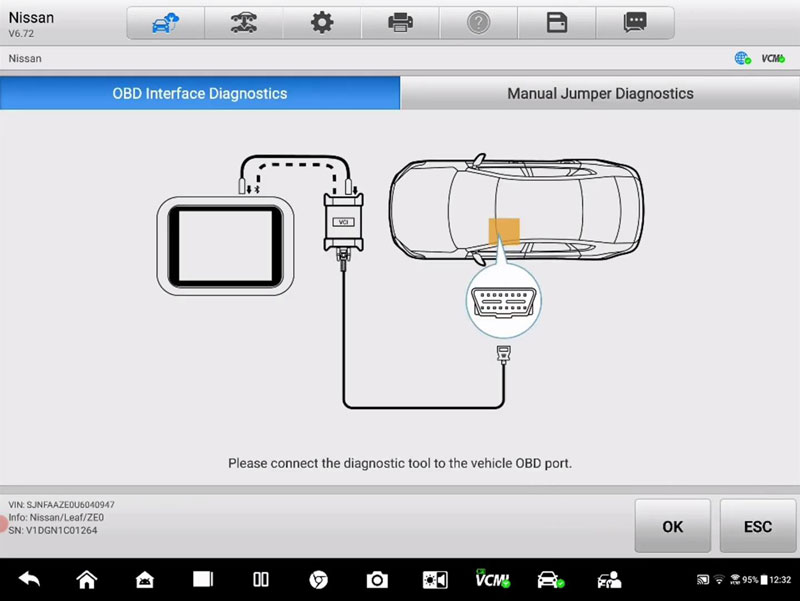

- Connect the Autel Ultra EV to the vehicle OBD port and switch on ignition.

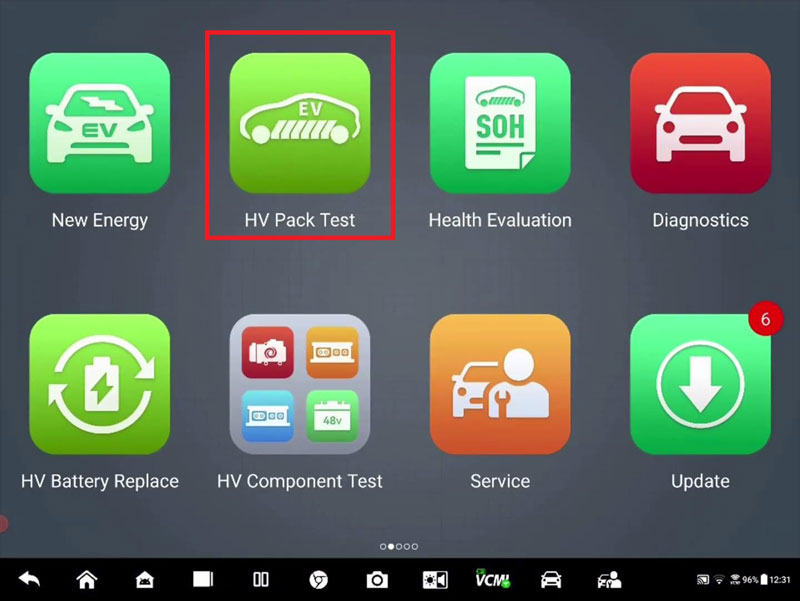

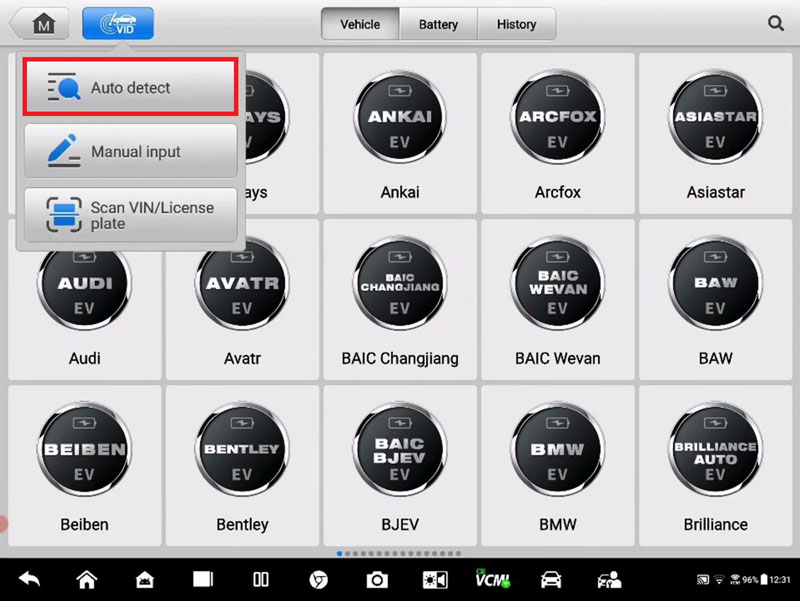

- Select: HV Pack Test >> Auto Detect
- Read the technical certification, risk warning, and disclaimer, then press: OK >> Accept

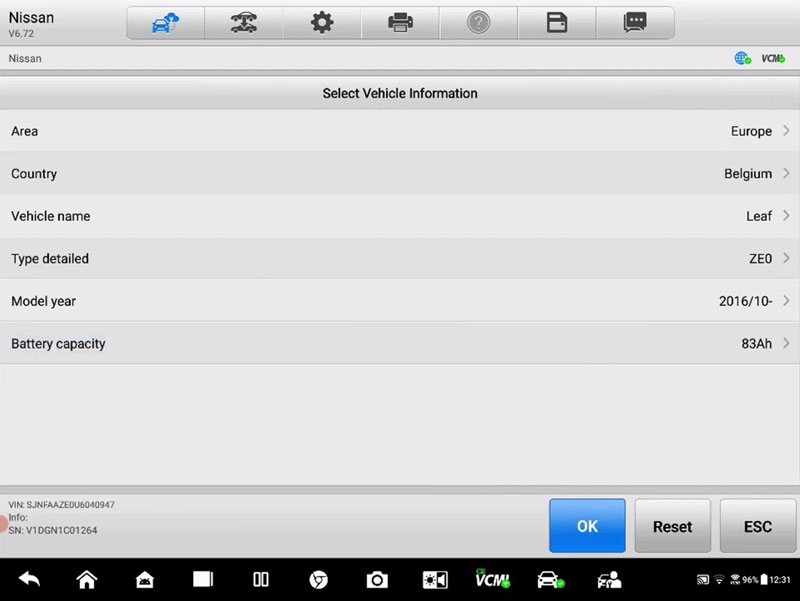

- Follow the vehicle selection path:
Europe >> Belgium >> Leaf >> ZE0 >> 2016/10- >> 83Ah
- The system will establish communication with the battery management system.
Battery Pack Information

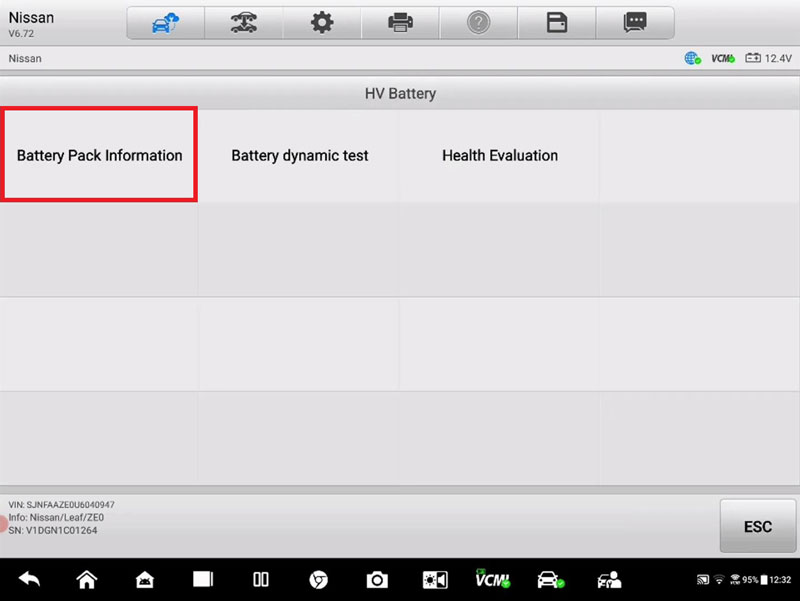

Select: Battery Pack Information

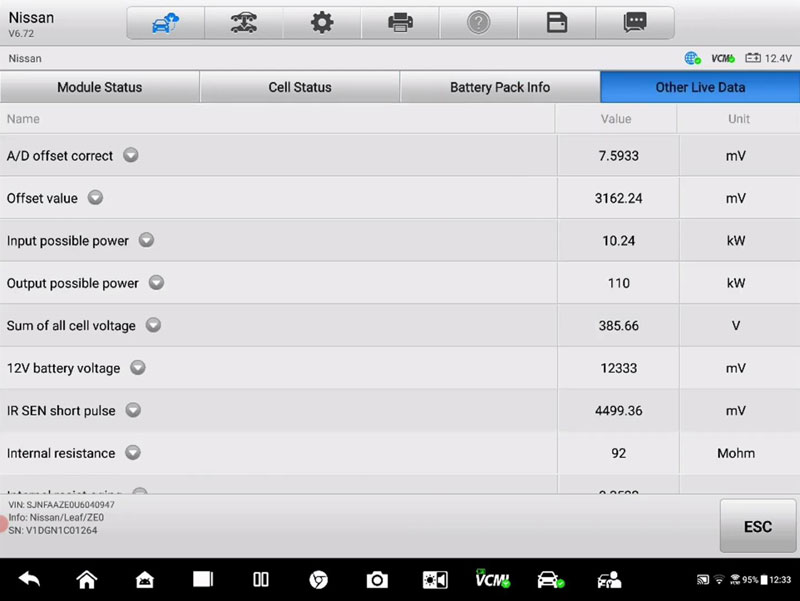

Here you can view live battery data directly from the vehicle, including:

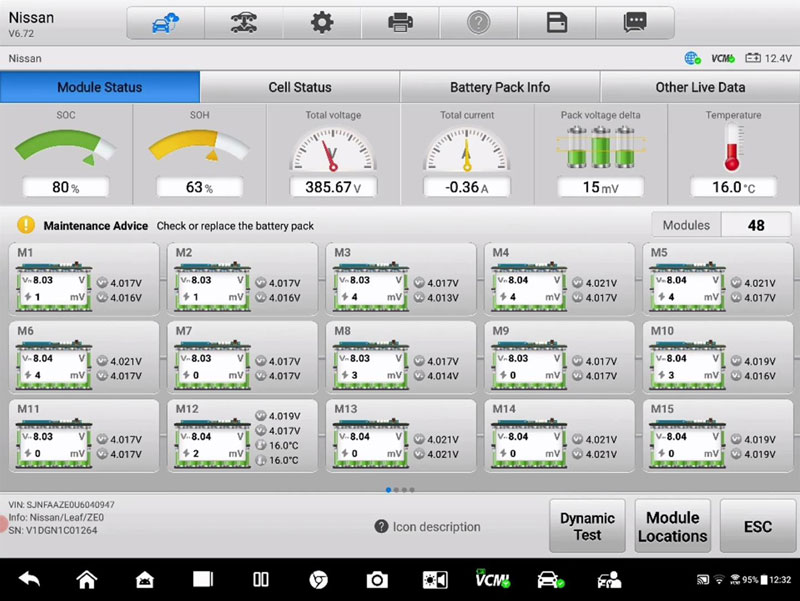

- Module status

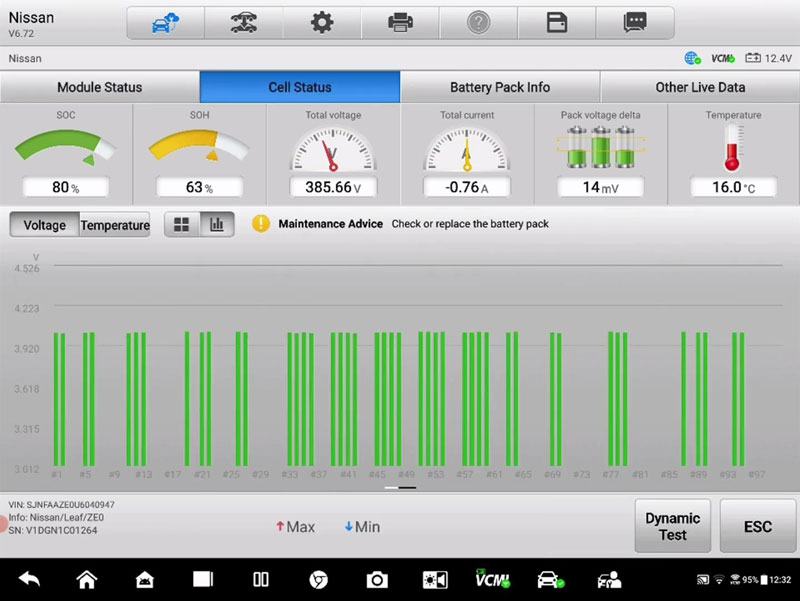

- Cell status

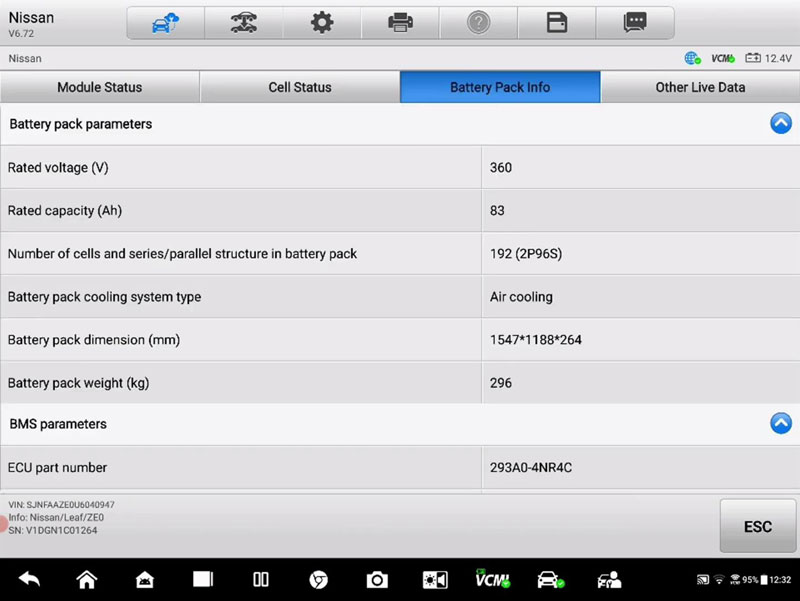

- Battery pack information
- Other live data
Generate Test Report

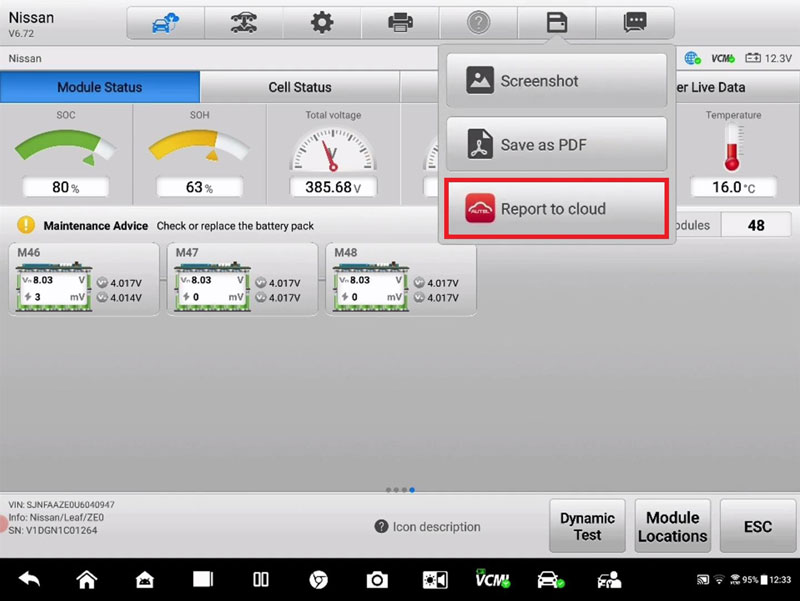

- Press: Save >> Report to Cloud
- Enter odometer reading: 147,797 km, press Save.

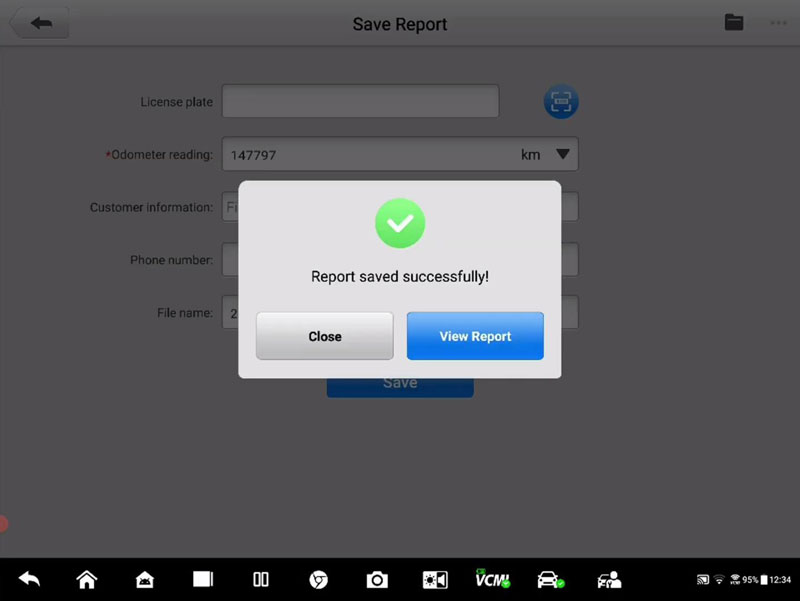

- After upload is completed, the system shows: “Report saved successfully”

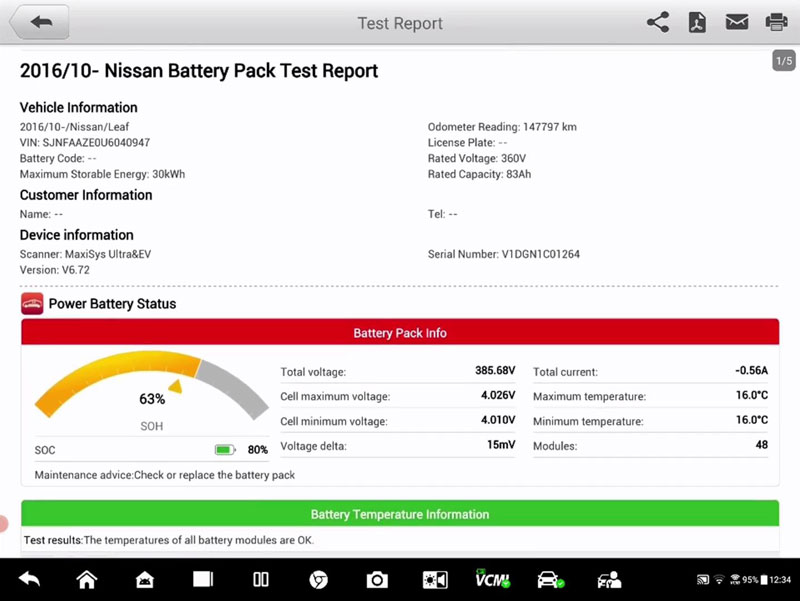

- Select: View Report
- The battery test report is now available.
Why Use Autel MaxiSYS Ultra EV
The Autel MaxiSYS Ultra EV provides direct OEM-level EV battery diagnostics and allows structured HV battery data reading and report generation in a single workflow.
