How to Program 2018-2024 Ford Edge AKL with Autel IM608 PRO2?

by

This guide provides a streamlined walkthrough for programming a new smart key for a 2018-2024 Ford Edge using the Autel IM608 PRO2.

If your vehicle has reached its 4-key limit, this “All Keys Lost” method is the most efficient way to reset the system and add new keys.

Preparation

  • Hardware: Autel IM608 II connected to OBDII.
  • Keys: One working original key and one new blank key.
  • Location: Identify the emergency start slot (programming slot) inside the center console or armrest.

Programming Steps

1. Vehicle Identification

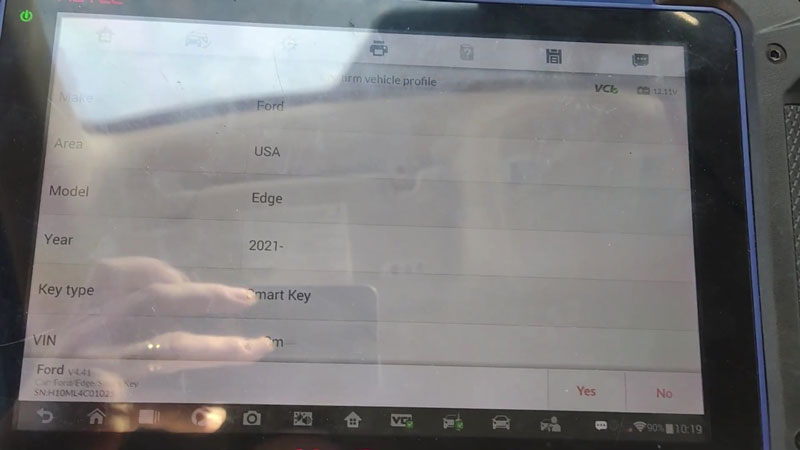

Select Ford > Automatic Selection to read the VIN > Ford > Edge > 2021- > Smart Key > IMMO Status Scan > Quick Erase DTC to ensure the system is clear.

2. Reset & Program (All Keys Lost)

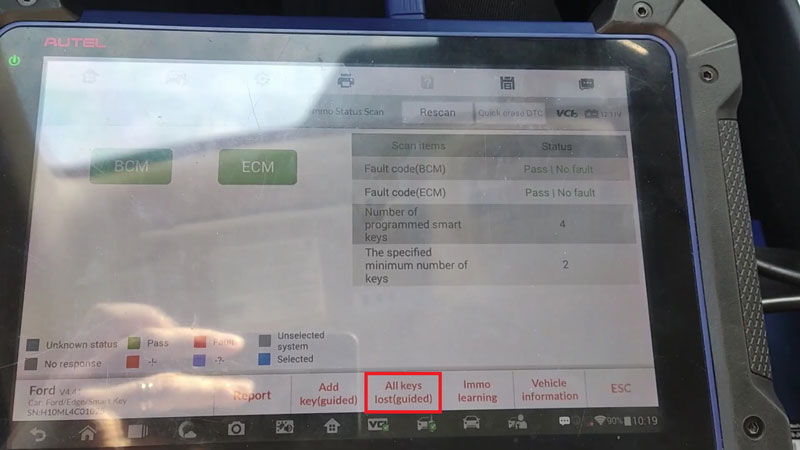

  • Select All Keys Lost (This bypasses the 4-key memory limit).

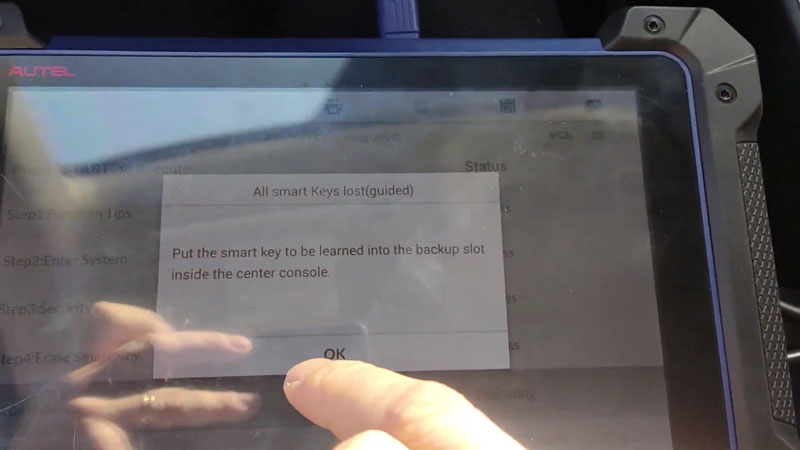

  • Put the new key to be learned into the backup slot inside the center console.
  • Once the screen confirms “Learning Successful” (Current keys: 1), select Yes to learn the next key.
  • Second Key: Remove the first key, insert the new blank key into the slot, and press OK.

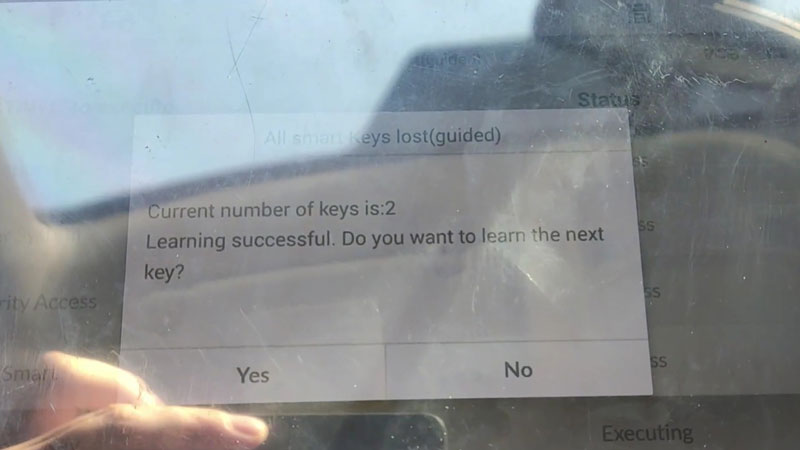

  • The screen will display “Learning Successful” (Current keys: 2). Select No to finish.

3. Final Test

  • Remote: Test the lock/unlock buttons on both fobs.
  • Ignition: Ensure the engine starts with the new key.
