How to Add 2023-2024 Suzuki Ertiga/XL7 Smart Key with Autel KM100?

Are you looking for a fast, reliable way to program smart keys for the latest 2023-2024 Suzuki Ertiga and XL7?

The Autel MaxiIM KM100 is the ultimate professional tool designed to streamline your workflow and get your customers back on the road in minutes.

Whether you are adding a spare or dealing with an “all keys lost” scenario, the KM100 offers a seamless, guided experience.

Why Choose the Autel KM100?

Speed: Quick immobilizer status scans.
Efficiency: Automated 8-digit PIN code calculation via networking.
Versatility: Supports mechanical, smart, and knob-type keys.

Step-by-Step Programming Guide

Vehicle Setup

Connect your KM100 to the OBDII port and navigate to:

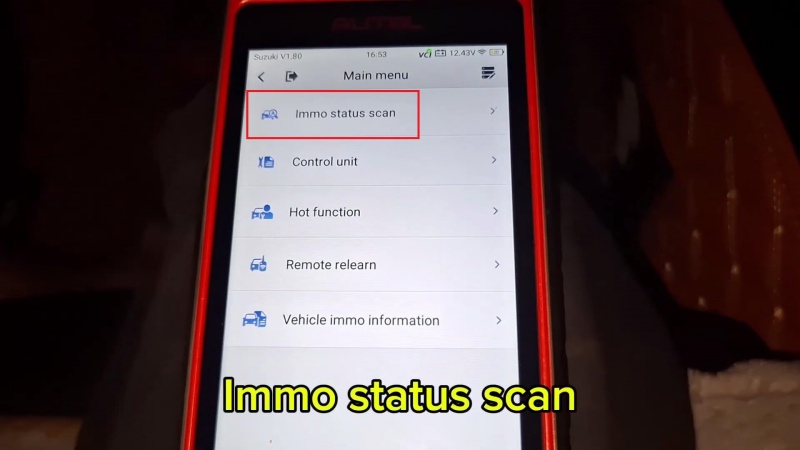

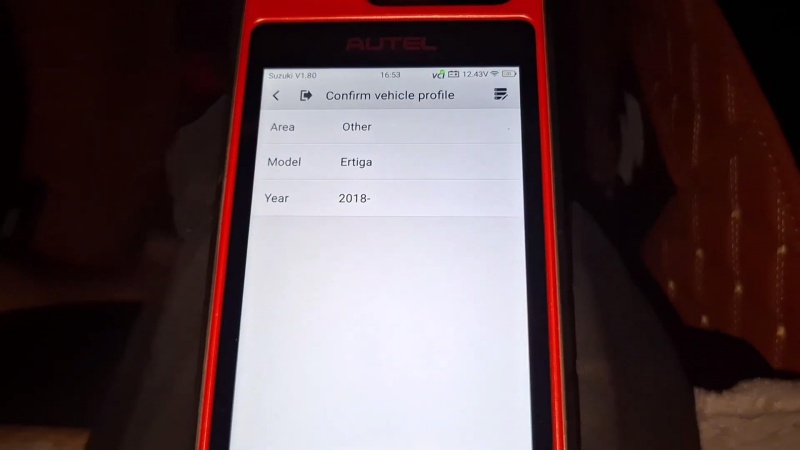

IMMO > Suzuki > Manual Selection > Ertiga > 2018- > Immo Status Scan.

Preparation

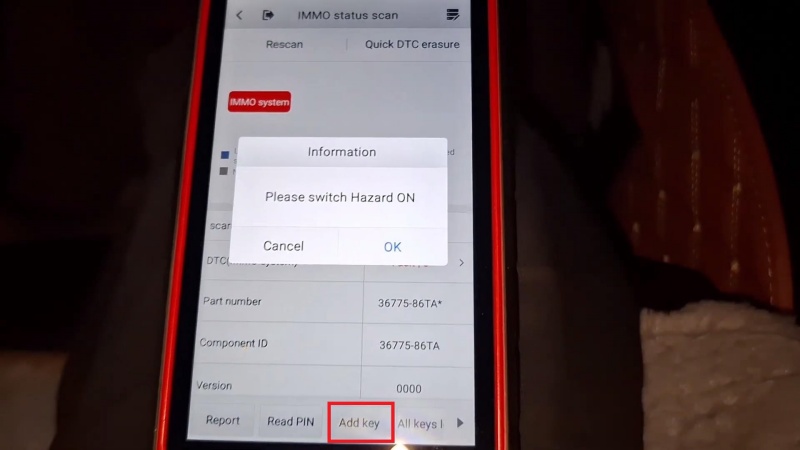

Switch the Hazard lights ON.
Switch the Ignition ON (If all keys are lost and the ignition won’t turn, a short-circuit at the immobilizer box may be required).

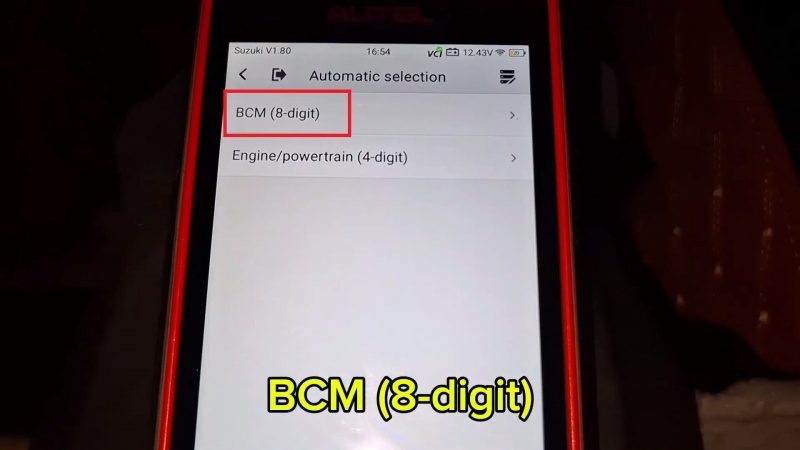

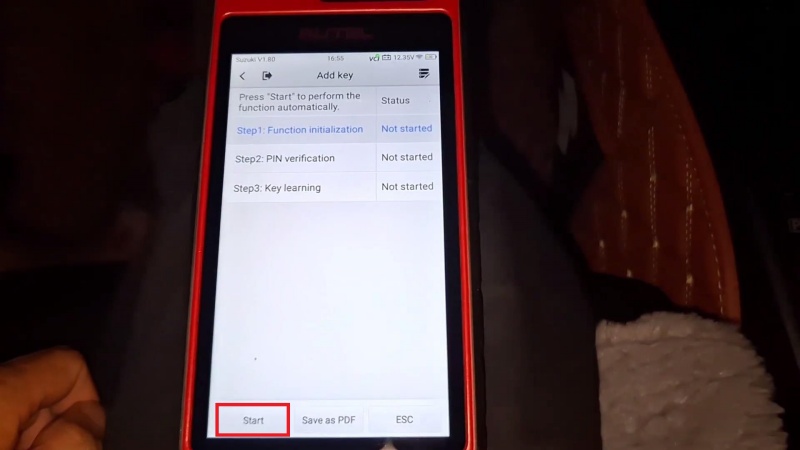

Select Add Key under the BCM(8-digit) menu.

PIN Code Calculation

The KM100 simplifies security. When prompted for the 8-digit PIN, simply click “YES” to automatically calculate the code through the online network.

Note: This process will clear existing keys; ensure all keys to be programmed are present.

Key Learning

Follow the on-screen prompts based on your key type:

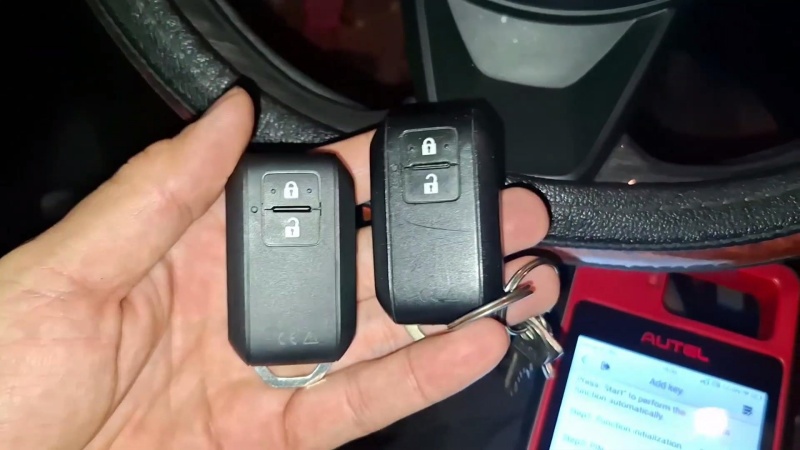

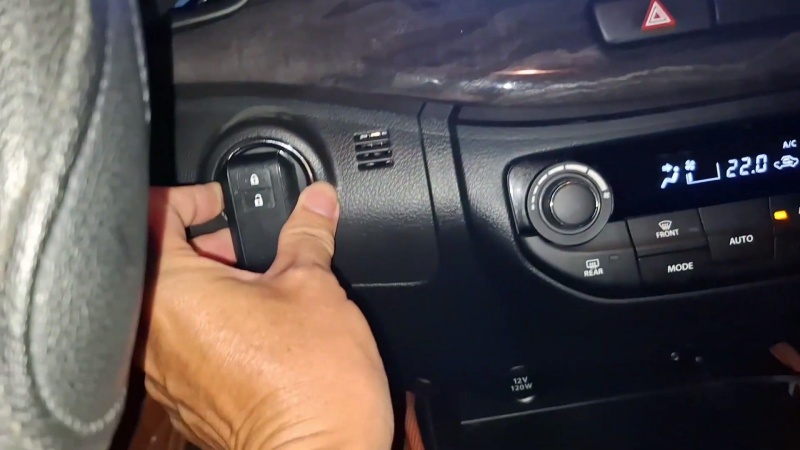

Smart Key: Place the new key against the Push Start Button with the logo facing the button.
Mechanical/Knob Key: Insert the key or place the smart card on the knob switch as directed.

Success

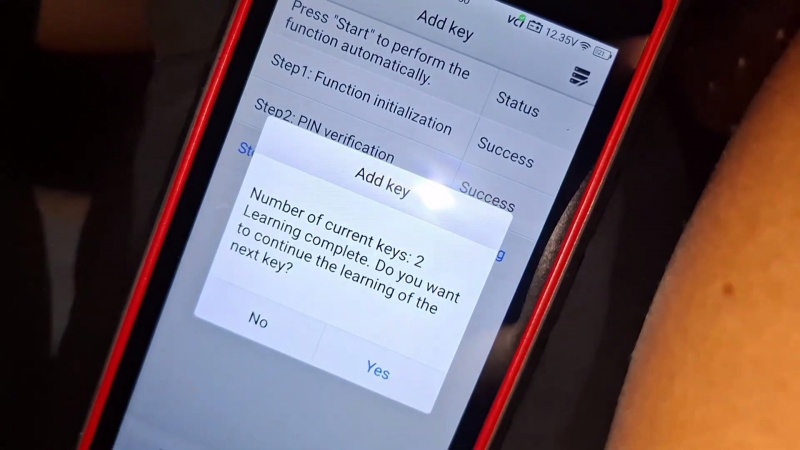

Once the screen displays “Learning Completed,” you can choose to program additional keys or exit. Test the buttons and ignition to confirm the key works perfectly.
