The Autel MaxiSYS Ultra EV is the center of attention today as we unbox a massive $5,000 investment in the future of automotive repair. With the industry shifting rapidly toward hybrids and electric vehicles, I decided to put my money where my mouth is to see if this professional-grade MaxiSYS Ultra EV is the ultimate solution for deep-dive diagnostics.

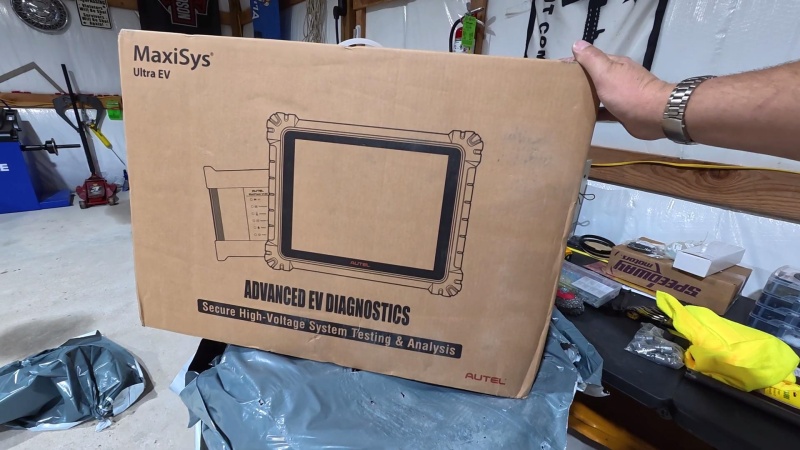

The Unboxing: More Than Just a Scanner
I honestly didn’t expect this to arrive in three separate packages weighing 30 lbs. Here’s what came in the set:

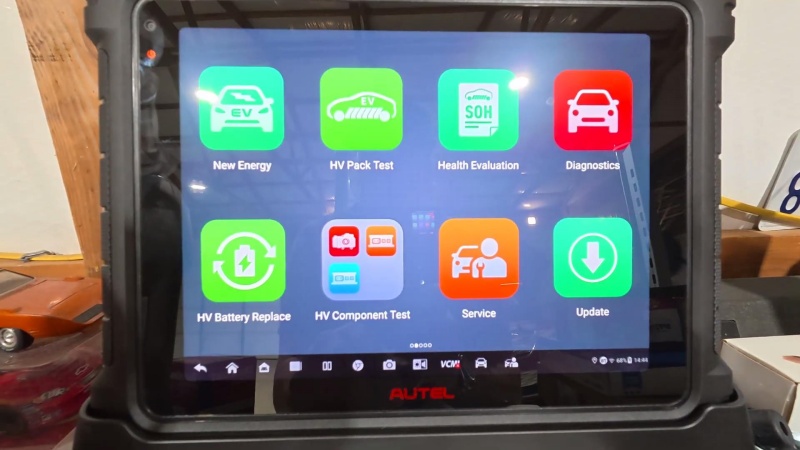

- Autel Ultra EV: The centerpiece with a massive, crisp display and a carbon fiber back.

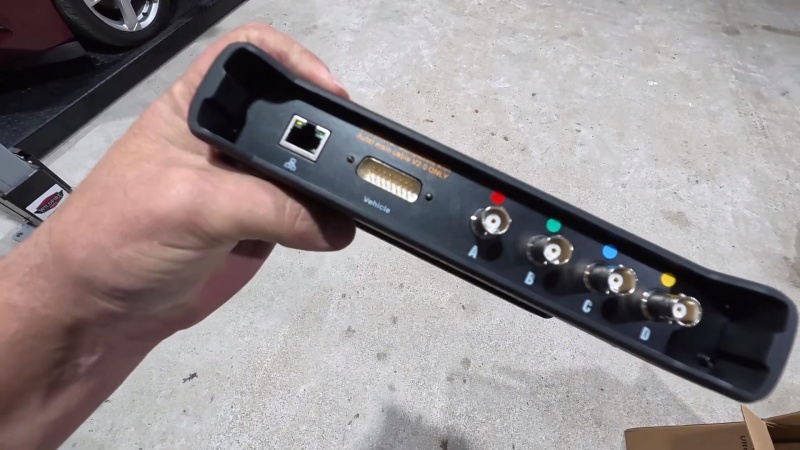

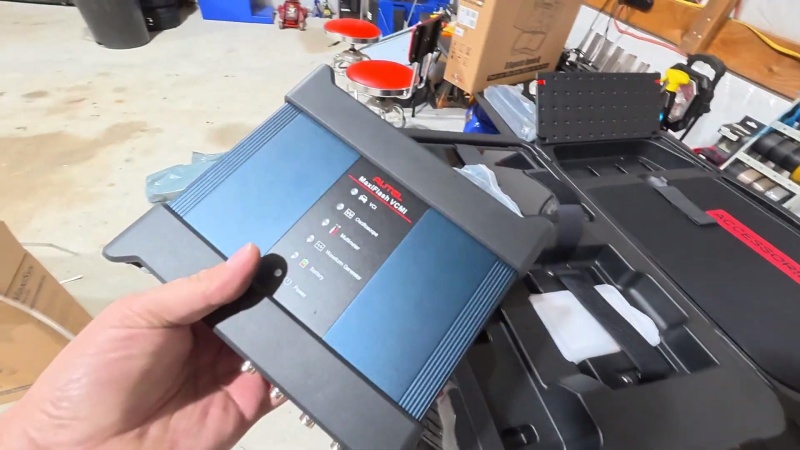

- VCMI Device: This isn’t just a vehicle interface; it’s an 5-in-1 tool acting as a VCI, oscilloscope, waveform generator, multimeter, and CAN BUS check.

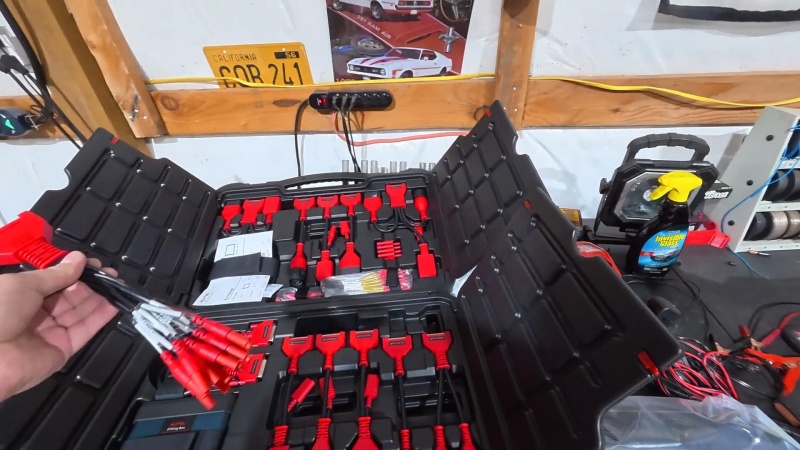

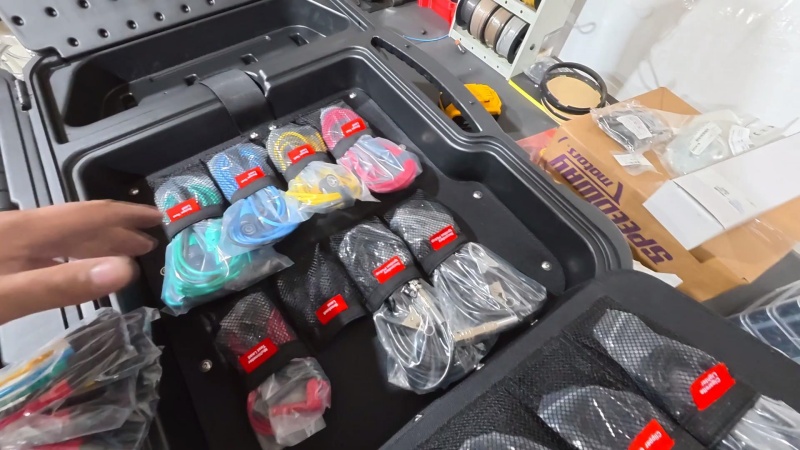

- EV Diag Upgrade Kit & Adapters: A heavy collection of proprietary adapters for specialized battery pack testing.

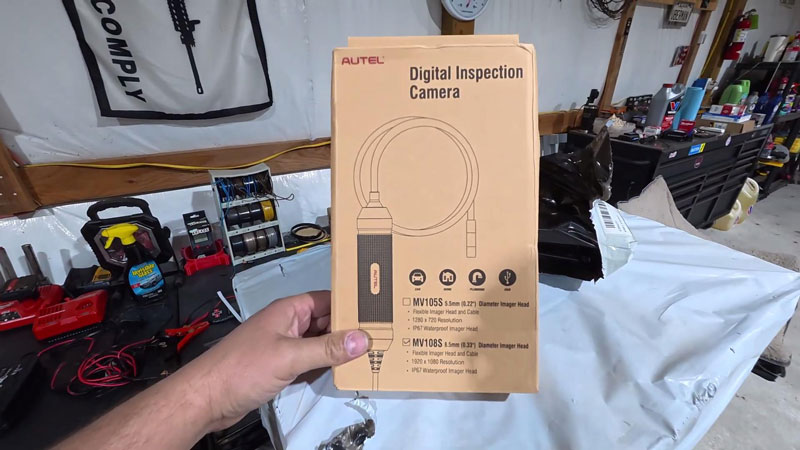

- Bonus Gear: The seller even threw in an Autel MV108S digital inspection camera with 1080p resolution.
Real-World Testing: Saving a Chevy Volt
To see if this $5,000 investment was worth it, I hooked it up to a Chevy Volt that was purchased for only $3,000 because the previous owner thought the hybrid battery was dead.
Key Diagnostic Features:

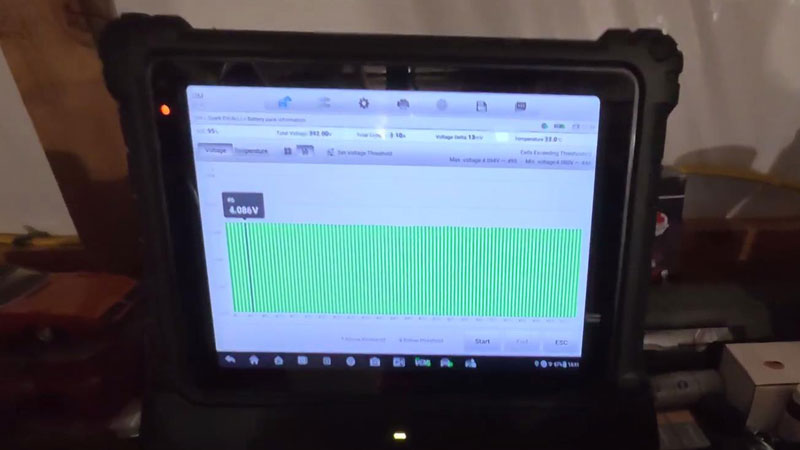

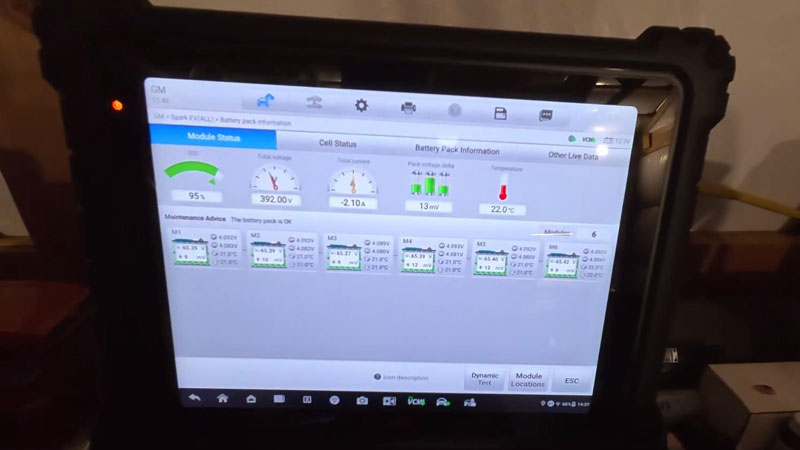

- Pack Voltage Delta: This is the biggest indicator of battery health. This Volt showed a delta of 13-14 millivolts, which falls perfectly in line with an excellently balanced pack (10-20mV range).
- Cell-Level Analysis: The tool allows you to see every single cell in each module (96 cells total for this car) to identify specific weak points.

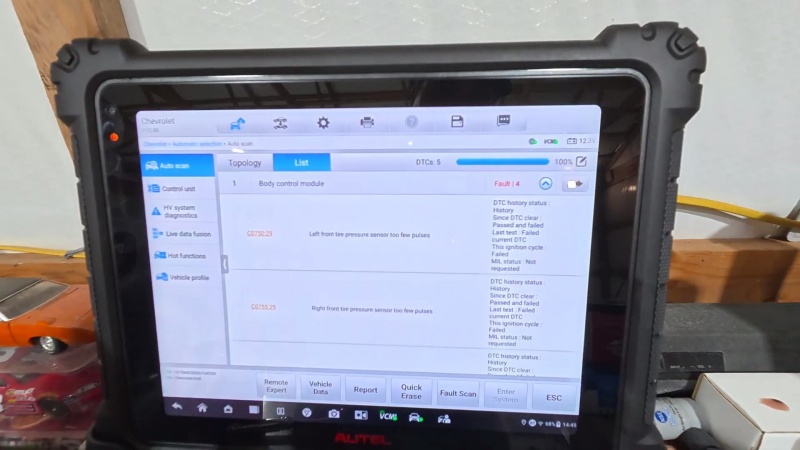

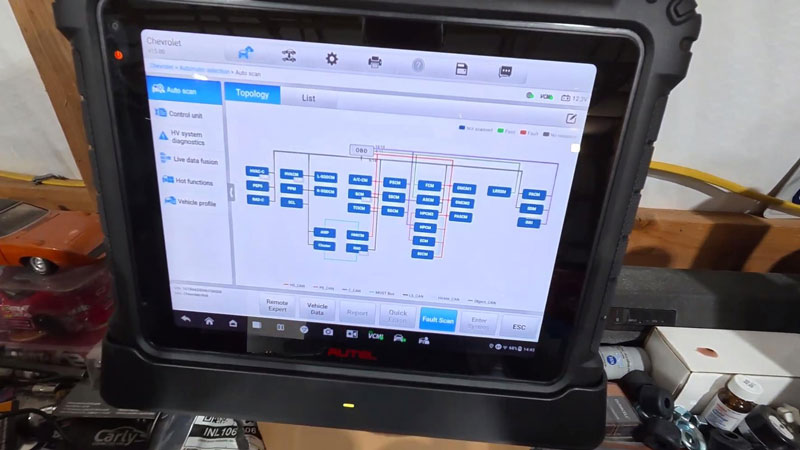

- High-Speed Topology: It mapped out all modules instantly, showing that the “battery failure” was actually just a bad 12V low-voltage battery causing havoc across the system.
The Verdict: Is It Worth It?
While $5,000 is a lot of money, you simply cannot fix what you cannot diagnose.
- Pros: Professional dealer-level access, unbeatable EV/Hybrid battery analytics, and a lightning-fast interface.
- Cons: It’s a bit “chunky,” and the massive accessory pack might be overkill for some DIYers.
If you want to stop guessing and start fixing the cars of the future, this is the tool.
