Autel IM608 Pro2 Program 2016 Infiniti QX60 All Keys Lost

Today I’m gonna program 2016 Infiniti QX60 all keys lost with Autel IM608 PRO 2 by OBD. Working with the Autel IKEY Remote. Let’s get start.



Step1. Generate Remote

Universal key >> Accept >> Universal key generation >> North America >> Infiniti >> Type by Model >> QX60 >> 2016 >> Infiniti QX60 2016-2018 >> Generate universal key



Universal key generation is completed.



Step2. Program New Key

IMMO >> Accept >> Infiniti >> Manual selection >> North America >> QX60 >> 2016 >> OK >> Control unit >> Immobilizer/Smart system



  1. Turn on the hazard warning light.
  2. Open and close the driver door once.
  3. Turn on the ignition. If the ignition cannot be turned on, press “OK” to continue.



Remote control learning >> Smart key learning

Turn on Hazard switch.

Turn off ignition switch or power switch.

Open and close driver’s door once.



Click on OK then immediately attach the smart key to the push start button.



Operate according to the following procedures:

  • Keep pressing the Start/Stop button until the instrument lights up.



Current status of ignition switch is ON, click OK.

Current status of ignition switch is OFF, click Cancel.

Turn the ignition to the OFF position.

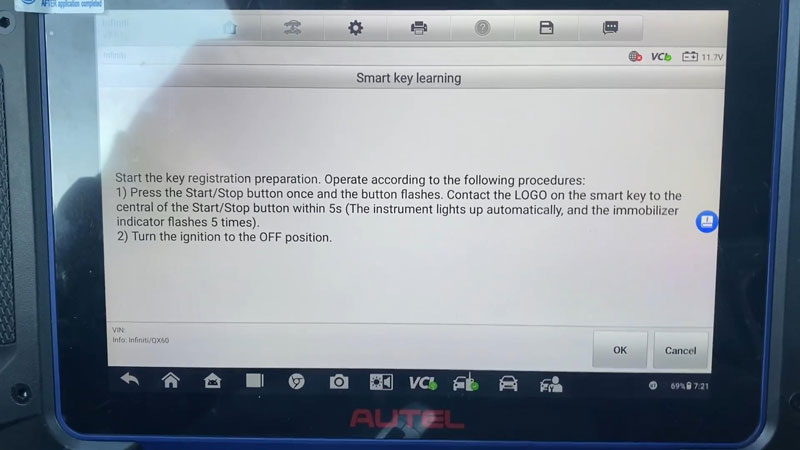

Autel IM608 II is starting the key registration preparation.

Operate according to the following procedures:

  • Press the Start/Stop button once and the button flashes. Contact the LOGO on the smart key to the central of the Start/Stop button within 5s(The instrument lights up automatically, and the immobilizer indicator flashes 5 times).
  • Turn the ignition to the OFF position.

Press OK.



Keys are registered to the vehicle on the following memory numbers.

To register an additional key, touch Add.

To complete registration, touch Next.



Use all registered keys to perform the following operations:

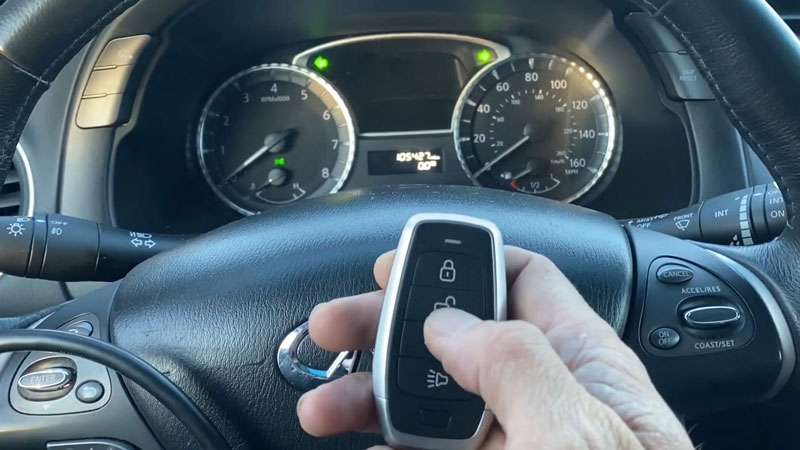

  • Press the Start/Stop button once. Contact the LOGO on the smart key to the central of the Start/Stop button within 5s(The instrument lights up automatically). Turn the ignition to the OFF position, wait for 3s. Then start the engine and wait for 5s. Turn the ignition to the OFF position.(or confirm that the engine can be started normally after the key being put into the car)
  • Check if the remote control is operating properly.



The key can normally work.

Done.
