Autel IM508 Add Smart Remote on 2018 Honda Civic

Autel IM508 can be used on Honda Civic to add key, do all key lost, reset immobilizer, replace IMMO components (engine/immobilizer/for blade key), (smart IMMO box/for smart key) and read live data/DTC. This post will share how to add more smart remotes on a 2018 Honda Civic by keyless system.



Tools need:

Car: 2018 Honda Civic

One working key+ one new key (Smart key chip: 47 frequency 433Mhz)

Device: Autel MaxiIM IM508 key programmer

Autel IM508

Procedures:

Push Start

Test two keys, the original key works normally, and the new key cannot work.

Turn ignition ON (press button 2 times)



Then follow the step-by-step guide to operate, the instruction also appears on the screen to help you to operate easily.



Connect MaxiIM IM508 with the vehicle’s DLC by the cable’s 16-pin male adapter

Enter the MaxiIM tablet, select [Honda]-> [System Selection]-> [Keyless System]-> [Touch-tone smart card (Honda)]

Autel IM508

Check if the ignition is turned on by pressing Start button twice.

Then it will configure system automatically

Select [Registration]-> [Add Smart Key]

Autel IM508

Pay attention to the registration condition:

1.There is no DTCs.

2.There must be one registered keyless remote.

3.One keyless remote that is capable of starting the engine must be in the vehicle

4.The ignition switch must be turned on (II) using the keyless remote. (The ignition key must not be used).

Registration notice:

Ensure the following processes to reduce noise as much as possible during keyless remote registration:

-Turn off all electrical devices (e.g., navigation and audio systems)

-Separate the diagnostic tool from the keyless remote as much as possible

-Close all doors, windows and sunroofs

Turn the ignition switch off

Note: Don’t press the foot brake and press the engine start/stop button

Wait for the ECU to stabilise…

Take registered remote inside the car and all others outside

Autel IM508

Turn the ignition switch on

Checking vehicle condition…

Take all original keyless access remotes out of the vehicle (within 100 sec)

Take a new smart remote into the car

Autel IM508

Register the new smart remote successfully

Autel IM508

Turn the ignition switch off and then on

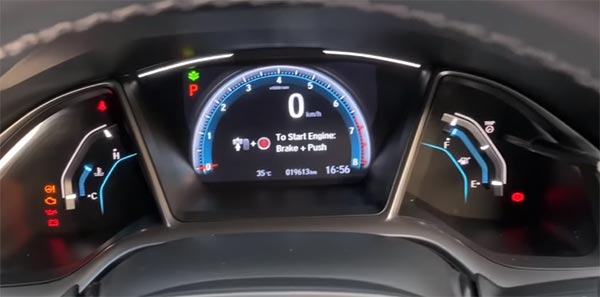

Check if both the keyless are access and immobilizer indicator lights are turned off

Autel IM508

Turn the ignition switch off and then on again

The registration is completed.

Turn the ignition switch off

Autel IM508

Finally, check all smart remotes can turn on

Autel IM508

Autel IM508
